Electronic Weekly 7 Days Programmable Digital Timer Switch Relay 1s~168h Time Control 220V 25A Din Rail Mount KG316

Electronic Weekly 7 Days Programmable Digital Timer Switch Relay 1s~168h Time Control 220V 25A Din Rail Mount KG316

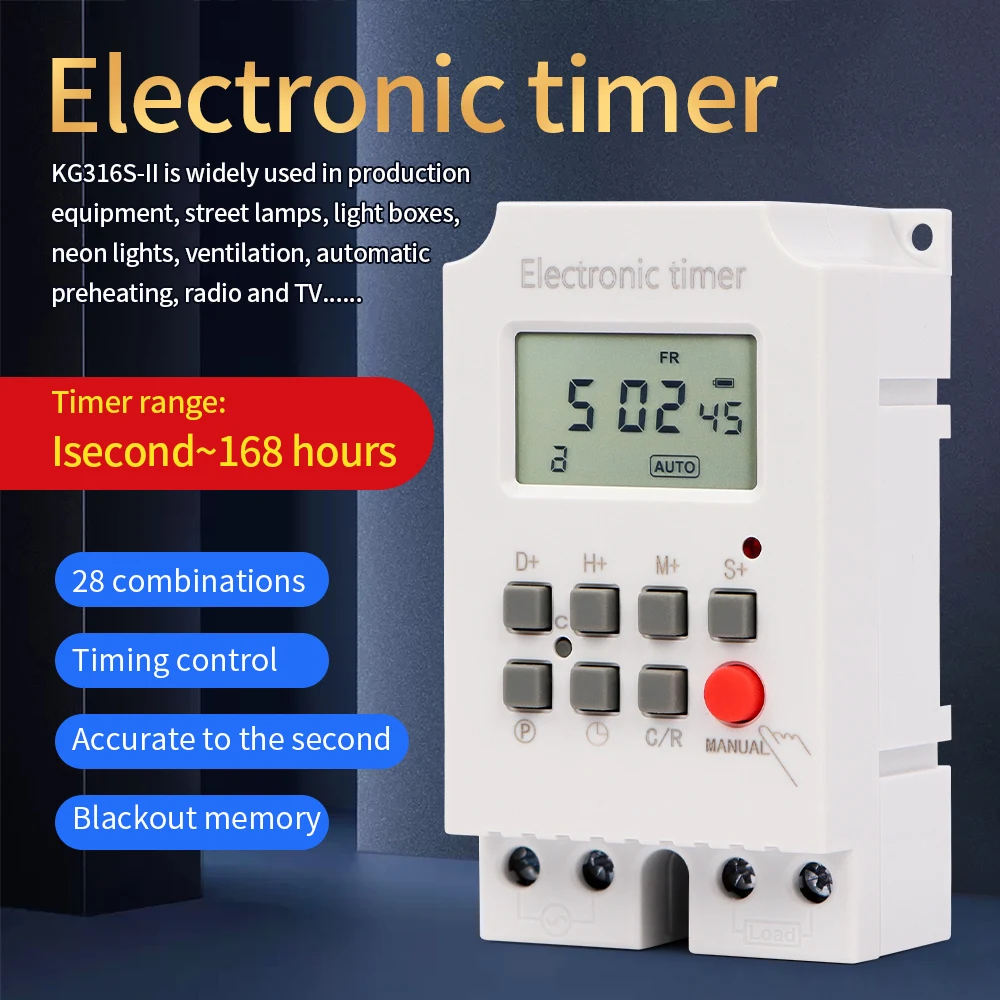

KG316S-II parameter

Standard Working power supply : 220V / 50HZ
Switch resistance load capacity : 25A
Indinductive load : 20A
Consumption Power : < 2VA (A)< 4VA (B)
Timer range : 1 second - 168 hours
Regular timer : 28 times ON / OFF (day/weeks)
Time error : < 1 s / day 25 ℃
Environment temperature : -25-60 ℃
Relative humidity < 95%
Dimension : 99 * * 42mm
Weight : 140g
Hibernation feature: Yes
Battery life: 1-2 years( 3V Lithium battery)

KG316T-X parameter

Standard power supply: 220V/50 HZ
Resistance load: 30A
Inductive load: 15A
Power consumption: ≈3VA
Power failure memory: 180 days
Timing range: 1 minute to 168 hours
On/off operation: 16 times/day/Week
Time error: 15 seconds/day (25℃)
Ambient temperature: -20-55 ℃
Relative humidity: <95% RH
Size: 120 72*45mm
Weight: 172g
External battery: AAA battery(not included)

KG316T-III parameter

Standard power supply: 220V/50 Hz
Resistance load: 25A
Inductive load: 15A
Power consumption: ≈ 1.5 VAC
Power failure memory: 60 days
Timing range: 1 minute to 168 hours
On/off operation: 16 times/day/Week
Time error: 15 seconds/day (25℃)
Ambient temperature: -20-55℃
Relative humidity: <95%RH
Size: 99*64*42mm
Weight: 135g
External battery: No.5 battery(not included)

NBL25A parameter

Standard power supply: 220V/50HZ
Load capacity: 25A
Induction load: 20A
Power consumption: ≈ 1.5VA(W)
Timing range: 1 minute to 168 hours
On/off operation: 16 times/day/week
Time error: 15 seconds/day(25℃)
Ambient temperature: -10-55 ℃
Relative humidity: <95%RH
Size: 86*65*35mm
Weight:110g
Built-in battery: Built-in large-capacity battery
